Before starting to program for FRC, you need to grasp the basics (at least) of Java and Object Oriented Programming. This will by no means be a complete guide - a better curriculum can be found on Codecademy, MOOC (this one is praised a LOT), or this youtube playlist. This document will be a quick, basic layout of the java features you’ll need to use for FRC - more of a reference guide then a learning resource.
If you want to become an FRC programmer, you should either already understand object oriented programming before build season or teach yourself OOP/Java wherever you can. There may not be enough resources to dedicate to teaching completely new programmers during preseason. Please try to have a grasp on this stuff before it’s time to build.
Primitive Variables
You can declare a variable, which is a representation of a piece of information, in Java using the syntax Type Name = Value. Typically variables are used in FRC programs to encapsulate physical hardware (you’ll have to declare a variable for a motor controller or encoder) or commands and subsystems.
Java has eight primitive variable types, some of which are useful for robotics applications. They are as follows:
boolean isFinished = true; // A boolean can be true or false. It represents binary state.
byte b = 4; // One byte. Don't use this unless you know what you're doing. Ranges between -128 to 127
char letter = 'b'; // One character.
short s = 103; // A 16 bit signed integer. Ranges between -32,768 and 32,767
int i = 4459; // A 32 bit signed integer. Ranges between -2,147,483,648 to 2,147,483,647
long l = 445944594459; // A 64 bit signed integer. Unreasonably broad range. Probably won't overflow.
float f = 103.34; // A 32 bit decimal number. Single precision. May cause rounding errors.
double d = 103.321321; // A 64 bit decimal number. Double precision.Best Practice
Prefer
doubletofloatwherever possible - it’s less susceptible to rounding errors.
If you need to pass simple numbers, a primitive is typically what you’ll use. Mostly you’ll be passing around doubles.
If you want to change a variable’s value, you can do so by using the syntax Name = Value.
Classes
Classes are custom types defined by the user. They act like “blueprints” to create an object. They have two main components - Fields (also called members or member variables) and Methods (functions). Fields are objects or variables that belong to the class, and they can be of any type, including other classes. Methods are blocks of code that do work relating to the class.
Fields are defined like any variable, except with an access specifier before: Access Type Name = Value. The access specifier is either “public” or “private”. Public fields can be accessed from anywhere else in code, whereas private fields can only be accessed within the class. You should try to make as many fields private as possible, because poor access from elsewhere in the code can modify your variables in ways you don’t expect. Whenever you want to change or access your fields, you should write a getter or setter to give some guardrails to that behavior.
Methods are pieces of code that take objects and run operations on them. You can declare a method with the syntax Access ReturnType Name(Type Parameter1, Type Parameter2) { code; }. The parameters are objects that the user can pass into the function which may change how the function works. To use a function, call it with the syntax Object.method(param1, param2);.
All classes also have a constructor. A constructor is a method with the same name as the class, which returns a new object made from the class.
public class Car {
private int cost; // Fields typically shouldn't have a default value.
private boolean locked = true; // Unless you *need* the field to start with one.
private Motor motor; // This field will hold a Motor object.
private int wheelSize;
public Car(int cost, Motor motor, int wheelSize) {
this.cost = cost; // Use this.{field} to specifically reference a field on the object you're in.
this.motor = motor;
this.wheelSize = wheelSize;
/* At this point, the fields all hold a value that the user passed in to the constructor. */
}
public int getCost() { // Non-constructor methods need return values; if you don't return anything, set this to 'void'.
return this.cost;
}
public void setCost(int newCost) {
this.cost = newCost;
}
public double getDriveDistance(double time) {
double totalDistance = time * horsepower;
return totalDistance;
}
}Objects
Objects are variables that aren’t primitive, but rather constructed from a class. You can’t directly call the methods or access the fields on a class (unless it’s static, but that’s another topic) until you make an object out of it. You can access fields and call methods of an object using a period. Here is an example using the previous class:
import myProject.Car; // The class belongs in a different file; import it to use it.
import com.Cummins.Engine; // Someone else made the Engine object; import it from a library.
public class Example {
public static void main(String[] args) { // main() is the entry point for a Java program.
Engine v8 = new Engine(8);
Car my_whip = new Car(37000, v8, 6); // $37000 car with a v8 engine and 6 inch wheels.
double two_minute_distance = my_whip.getDriveDistance(120);
}
}Lists
Lists are objects that contain an assortment of other objects. Lists are very useful when you have pieces of related or sequential data and you don’t know how many variables you’ll need for them - or there are too many to reasonably write out variables. There are a variety of list/collection objects in Java and every other programming languages, but most often you’ll be using the ArrayList. ArrayLists are lists that are dynamically sized - they can shrink and grow on demand to fit your objects.
List objects almost universally implement indexing as a way to access the elements in the list. Each element is given a sequential index - the first element is 0, the second element is 1, and so on. To access an element from the list, use the syntax list[index].
import java.util.ArrayList; // Most standard library objects have to be imported from java.*
public class Example {
public static void main(String[] args) {
ArrayList<int> my_list = new ArrayList<int> (1, 2, 3); // The list state looks like: { 1, 2, 3 }
int num = my_list[1]; // num contains the number 2.
my_list[2] = 10; // The list state looks like: { 1, 2, 10 }
my_list.add(4459); // The list state looks like: { 1, 2, 10, 4459 }
}
}Boolean Expressions
A boolean expression is any combination of objects, variables, and operators that results in a “true” or “false” value. Boolean expressions are an incredibly important part of writing code in modern languages, and also a big potential source of bugs. It’s worth it to pay extra attention to these expressions. Every boolean expression consists of a boolean or comparison operator and some values.
public class Example {
public static void main(String[] args) {
/* Both types of operators require a value on the left and right to evaluate. */
/* Boolean operators */
&& // AND Returns true if values on the left and right are true
|| // OR Returns true if one of the values, left or right, are true
^ // XOR returns true if only one of the values are true
! // NOT flips a value from true to false or false to true
/* Comparison Operators */
== // Returns true if the values on left and right are equal. DO NOT USE FOR OBJECTS.
!= // Returns true if the values on left and right are not equal. DO NOT USE FOR OBJECTS.
> // Returns true if the value on the left is greater than the one on the right.
< // Returns true if the value on the right is greater than the one on the left.
>= // Returns true if the value on the left is greater than or equal to the one on the right.
<= // Returns true if the value on the left is less than or equal to the one on the right.
}
}Objects should not use direct comparison operators. Instead, objects that may need to be compared generally implement a .equals() method. This should be used instead - direct comparisons between objects using double equals signs will almost always return false even if the objects are functionally equal for reasons beyond the scope of this guide.
Here is an example for use of each operator:
public class Example {
public static void main(String[] args) {
boolean is_raining = true;
int temperature = 82;
boolean is_cold = temperature < 70;
boolean wear_heavy_coat = (is_raining && is_cold); // false
boolean wear_long_sleeves = (is_raining || is_cold); // true
boolean cold_or_raining = (is_raining ^ is_cold); // true
boolean sunny_day = (!is_raining) // false
boolean is_seventy = (temperature == 70); // false
boolean isnt_seventy = (temperature != 70); // true
boolean over_seventy = (temperature > 70); // true
boolean under_seventy = (temperature < 70); // false
boolean deadly_heat = (temperature >= 104); // false
boolean ice_freezes = (temperature <= 32) // false
}
}Conditional Flow
Conditionals are the primary use of boolean expressions, and the way to create code that does different things at different times. Conditional flow consists of if blocks, else if blocks, and else blocks primarily.
if blocks use the syntax if (condition) {code} and are the most basic conditional block. The condition in the parenthesis must evaluate to a boolean - i.e., be a boolean expression - and as long as the condition evaluates to true, the code in the block will run, and no more if or else if blocks in the sequence will be allowed to run.. If the condition evaluates to false, the code will be skipped over and program execution will continue.
else if blocks use the syntax else if (condition) {code} and can only be placed after an if block. If the conditional in the first if block evaluates to false, the else if will run its conditional the same way the if block did. If the expression in conditional evaluates to true, the else if block will be allowed to run and no more if or else if blocks in the sequence will be allowed to run. If the expression in conditional evaluates to false, the else if block will be skipped over.
else blocks use the syntax else {code}. else blocks run at the end of an if/else if chain if none of the previous blocks’ conditionals evaluated to true. The else block is a way to tell the program “run this code in any situation my conditionals didn’t already account for”. The else block must be at the end of the if chain, and there can only be one per chain.
import myProject.clothes.Top;
import myProject.clothes.Wardrobe;
public class Example {
public static void main(String[] args) {
int temperature = 42;
Wardrobe closet = new Wardrobe();
Top my_top; // We don't know which top we'll wear, so don't give this object a value yet
if (temperature < 50) { // Catches any temperature under 50
my_top = closet.getCoat();
}
else if (temperature <= 60) { // Catches any temperature between 50 and 60, inclusive
my_top = closet.getJacket();
}
else if (temperature <= 70) { // Catches any temperature between 61 and 70, inclusive
my_top = closet.getLongSleeve();
}
else { // Catches any other temperature
my_top = closet.getShortSleeve();
}
}
}Loops
Loops are the primary way to repeat code many times in your program. Most often, this is used to iterate over all the objects in a list or to program a system that stays on for an extended period of time. There are two types of loops in Java: for loops and while loops.
for loops use the syntax for (counter; comparison; step) {code}. for loops are intimidating and tricky at first but the core concept is simple. Firstly, the for loop creates a new variable in the counter section. Typically this is just an integer initialized to zero - so this looks like for (int i = 0; comparison; step) {code}. Then, the for loop runs the expression in the comparison section. Typically, this is a “less than” comparison, but it can be anything. If the comparison evaluates to true, the loop will run once; if it evaluates to false, the loop will stop running and the code will continue executing after the loop. By this point, or loop may look like for (int i = 0; i < 10; step) {code}. This loop will compile and run, but without a step block, i will stay at zero forever and the comparison will always be true. This will send your program into an infinite loop, stopping code execution!
WARNING
If your program stops executing but does not throw an exception or crash, and there is no console or robot output, you may be in an infinite loop! Check your conditionals to make sure that they must eventually become false.
To fix this, the step block is run once each time the for block’s code finishes executing. Anything written into the step block should compile, but typically the statement there modified your counter in some way. An example step looks like this: for (int i = 0; i < 10; i++) {code}, where i++ increases i by one. This loop will now run 10 times and stop after the 10th.

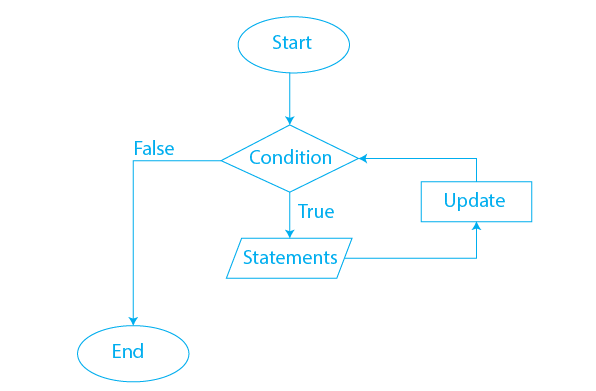

Here is a flowchart explaining for loop control flow:
And here are two examples of for loops being used:
public class Example {
public static void main(String[] args) {
int count = 0;
for (int i = 0; i < 99; i++) {
count++;
}
/* At this point, 'count' is 99. */
int second_count = 0;
for (int i = 200; i > count; i--) { // 'i' can be created again because it's destroyed after the first for loop ends.
second_count++;
}
/* At this point, 'second_count' is 101. */
}
}There is a second type of for loop, called a range-based for loop. This is a simpler type of loop designed to easily iterate over a collection. Range-based for syntax looks like this: for (Type Name: Collection) {code}. On the first loop, the for loop will attempt to assign the first element of Collection to the object Name. On the second loop, it will attempt to assign the second element of Collection to Name, and so on until every object has been iterated over.
import java.util.ArrayList;
public class Example {
public static void main(String[] args) {
int count = 0;
ArrayList<int> list = new ArrayList<int> (1, 4, 2, 6);
for (int num : list) {
count = count + num; // On the first loop, count is 1; on the second, it is 4; and so on.
}
/* At this point, count is 13. */
}
}Best Practice
Unless you need to do math with the index, you should prefer range-based for loops when iterating over collections.
Finally, while loops are the simplest type of loop. The syntax looks like this: while (condition) {code}. It’s as simple as it looks: before every loop, the while will evaluate condition. If the condition is true, it will run once more; if the condition is false, it will stop running and continue execution after the loop. while loops are typically reserved for niche use cases where the structure of a for loop is too limiting. While you may sometimes need to write a while loop, understand that it’s much easier to create bugs and infinite loops when handling iteration yourself.
Best Practice
Prefer
forloops overwhileloops wherever possible.
import com.robotics.Robot;
public class Example {
public static void main(String[] args) {
Robot my_robot = new Robot();
int distance_to_wall = my_robot.getFrontSensorDist();
while (distance_to_wall < 10) {
my_robot.driveForward();
distance_to_wall = my_robot.getFrontSensorDist();
}
/* At this point, the robot should be roughly 10 units from the wall. */
}
}Next Steps
Congrats! You know the basics of Java programming. This is 95% of what you’ll need to program FRC robots - but there is still some use of advanced concepts like polymorphism and inheritance, lambda functions, and event loops. These topics are worth researching yourself but they will also get brief explanations in their relevant sections in the Command Based Programming article.
If you believe you already have a solid grasp of the fundamentals of programming in Java, you can skip straight to WPILib and Game Tools - if not, I’d encourage you to build the Project - Vending Machine Simulation before moving on.
